Intermatic AG3000 120/240 VAC Universal HVAC Surge Protective Device - Comprehensive Surge Protection, TPMOV Technology, Watertight Enclosure - UL Listed and Reliable

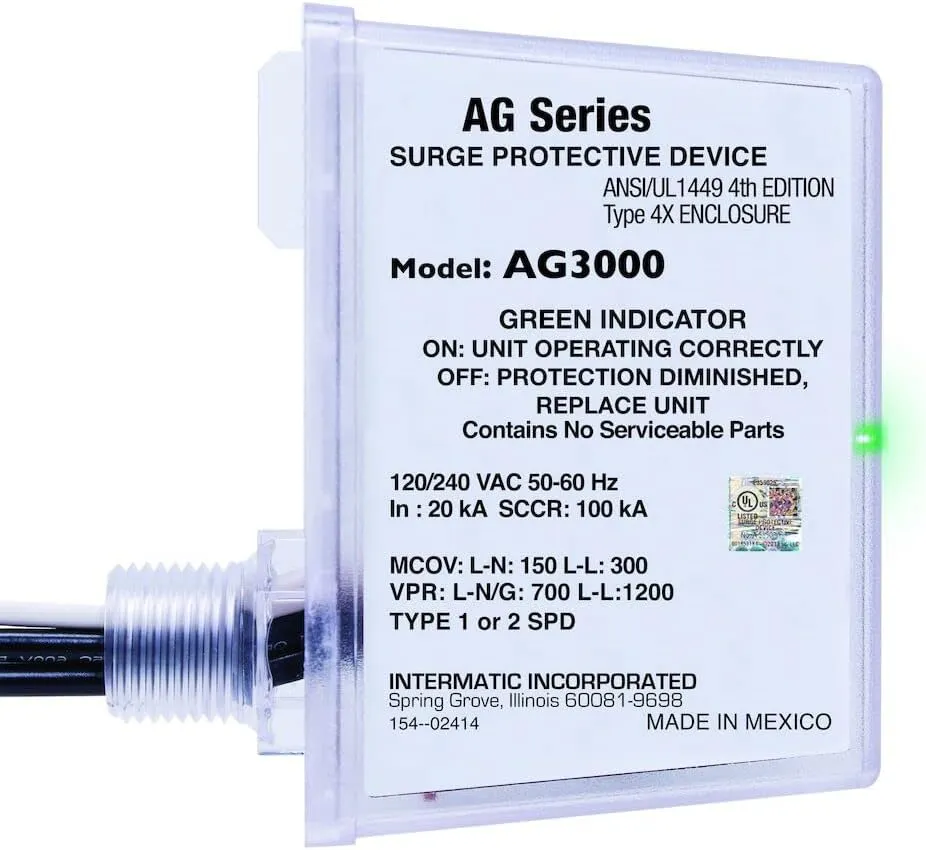

Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device is the perfect add-on for HVAC equipment. A green LED indicator provides the status of protection. Trusted, state-of-the-art TPMOV technology eliminates potentially hazardous failure modes.
Features:
-
Comprehensive Surge Protection: Safeguard your HVAC equipment and home appliances with the Intermatic AG3000 Surge Protective Device, offering three modes of protection (L-G, L-L, L-N) to shield against power surges and prevent potential damage.
-
Advanced TPMOV Technology: Experience peace of mind with our state-of-the-art Thermally Protected Metal Oxide Varistor technology, eliminating the hazardous failure modes associated with standard MOV technology and providing reliable surge protection for your devices.
-

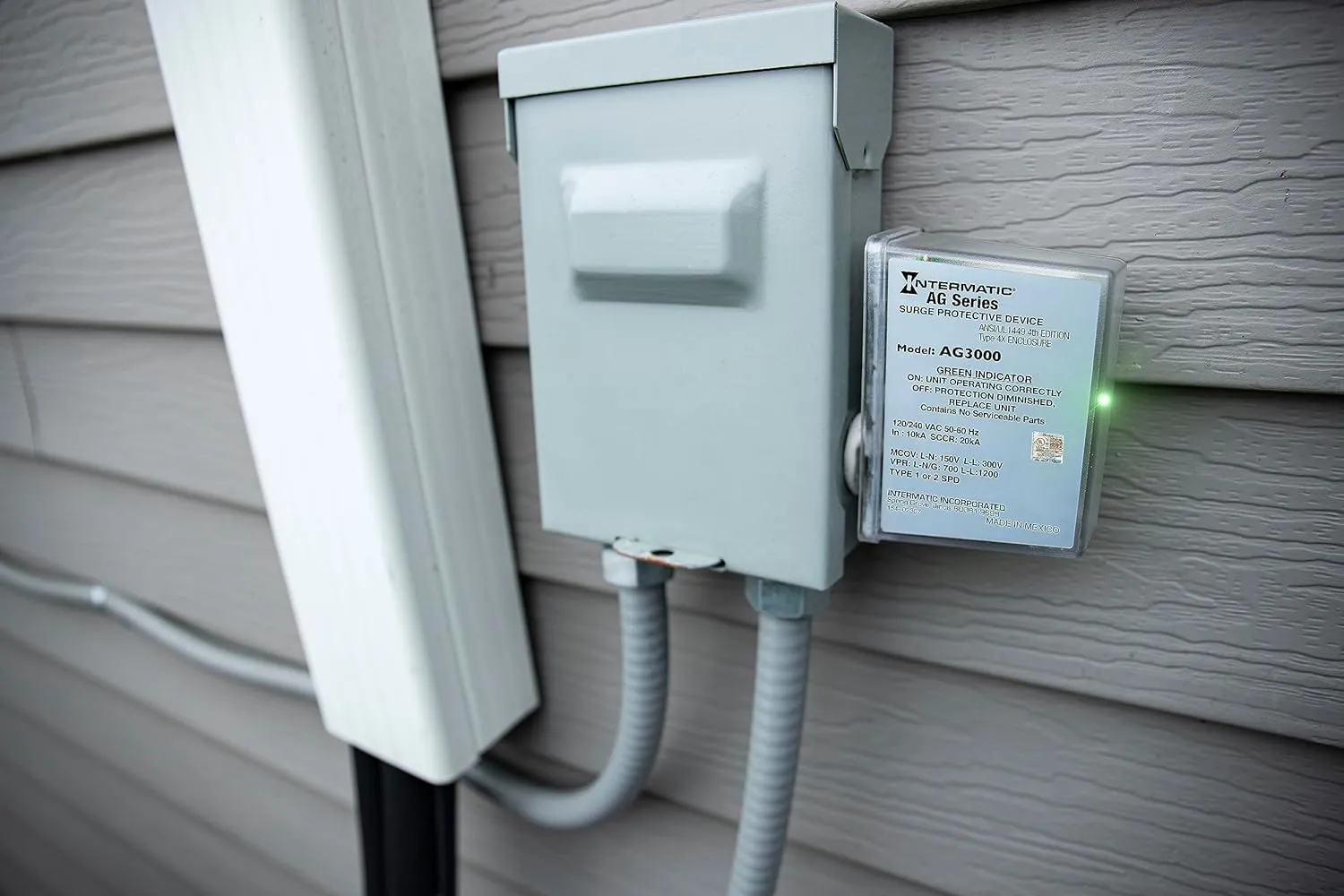

Built to last: The Type 4X watertight and UV resistant plastic enclosure of the AG3000 ensures durability and longevity, making it suitable for both indoor and outdoor installations. Protect your equipment against environmental elements and enjoy long-lasting surge protection.
-
Easy Monitoring: The green LED indicator on the AG3000 provides a visual status of protection, allowing you to quickly verify that your equipment is shielded against power surges. Stay informed and confident in the safety of your devices.
-
Trusted and Certified: The Intermatic AG3000 is UL Listed to ANSI/UL 1449 4th Edition, meeting the highest safety standards in the industry. With a 3-year product warranty and a $7,500 connected equipment warranty for 3 years, you can trust in the quality and reliability of Intermatic's surge protection solution.
Highlights:
- Three modes of protection: L-G, L-L, L-N
- TPMOV surge protection technology
- Green LED indicator provides status of protection
- Type 4X watertight and UV resistant plastic enclosure
- 3-year product warranty
- $7,500 connected equipment warranty for 3 years
- UL Listed to ANSI/UL 1449 4th edition
Applications:
- Distribution Panel

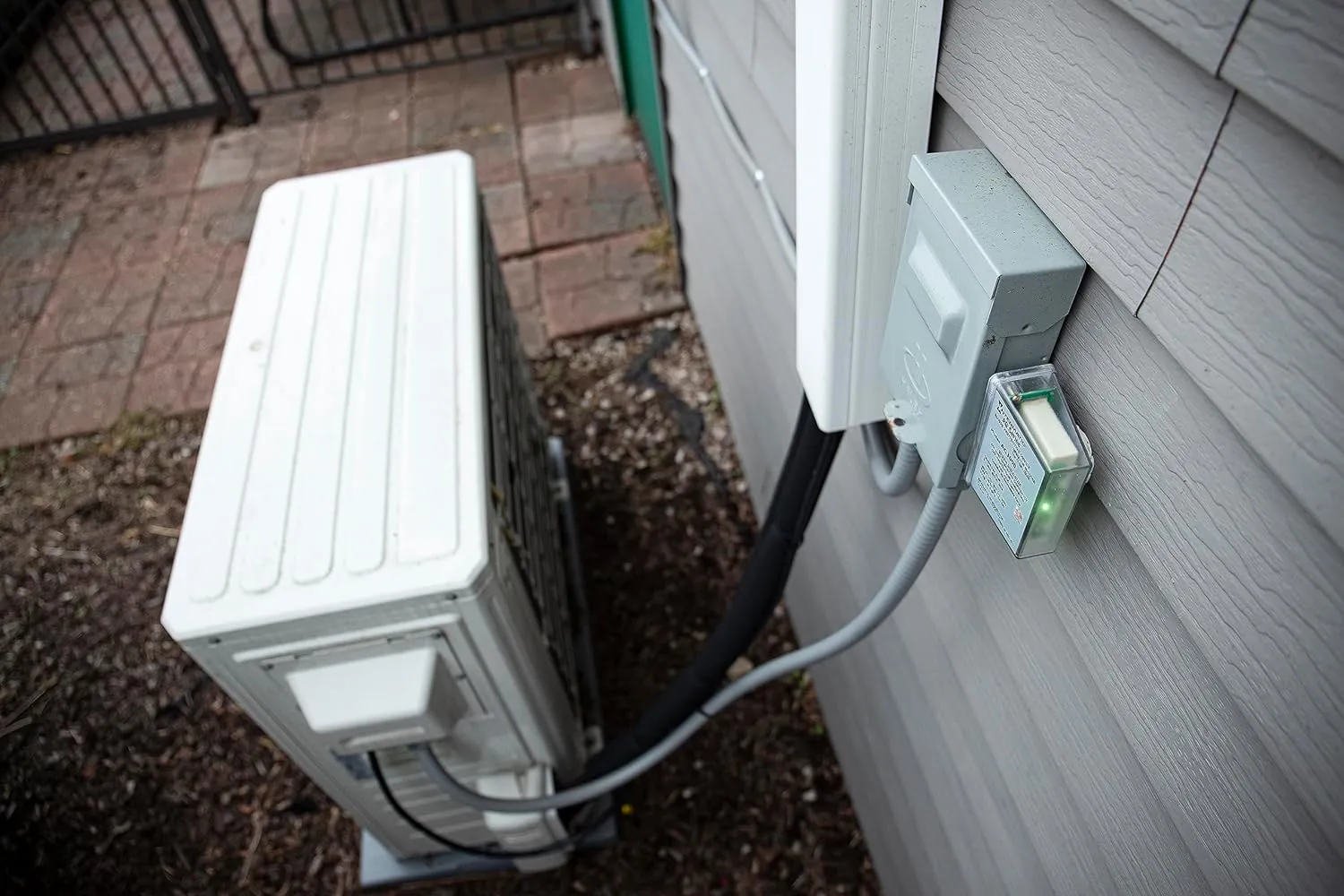

- HVAC Equipment Protection
- Service Entrance
Specifications:
| Brand | Intermatic |
| Model | AG3000 |
| Voltage | 120/240 VAC Single-Phase |
| Modes of Protection | 3 (L1-N, L2-N, L1-L2) |
| Surge Protection Type | 1, 2 |
| Maximum Surge Current Rating Per Phase | 50 kA |
| CA Prop 65 Message | Please see the Warning @ www.P65Warnings.ca.gov |
| Color | Clear |
| Connected Equipment Warranty Period | 3-Year limited |
| Enclosure Type | Indoor/outdoor type 4X |
| Material | Plastic |
| Maximum Continuous Operating Voltage (L1-N/G) | 150 |
| Maximum Continuous Operating Voltage (L-G) | 150 |
| Maximum Continuous Operating Voltage (L-L) | 300 |
| Nominal Discharge Current | 20 kA |
| Phase | Single |
| RoHS Certification | X |
| Short Circuit Current Rating | 100 kA |
| Surge Protection LED Indicator | Green |
| Surge Protection Technology | TPMOV® |
| UL Standard | ANSI/UL 1449 5th Edition |
| Voltage Protection Rating (L1-N/G) | 700 |
| Voltage Protection Rating (L-L) | 1200 |
| Warranty Period | 3-Year limited |
| Wire Size Max | #10 AWG, Tinned Copper |
| Wiring Option | Wire leads |
| Auto Start/Stop | False |
| Check Valve | False |
| DOE Compliant | False |
| Freeze protection | False |
| Leaf Screen | False |
| Operating Temperature Max (°C) | 70 |
| Operating Temperature Max (°F) | 158 |
| Operating Temperature Min (°C) | -40 |
| Operating Temperature Min (°F) | -40 |
| Product Depth (in) | 4.188 |
| Product Depth (mm) | 106.4 |
| Product Height (in) | 3.875 |
| Product Height (mm) | 98 |
| Product Width (in) | 1.625 |
| Product Width (mm) | 41 |
| Self Priming | False |
| Submersible | False |
| UL Certification | UL |
| Unit Carton Height (in) | 4.5 |
| Unit Carton Length (in) | 4.25 |
| Unit Carton Weight (lb) | 0.65 |
| Unit Carton Width (in) | 2 |
| UV Resiliant Outdoor Enclosure | False |
