Product Details
＋

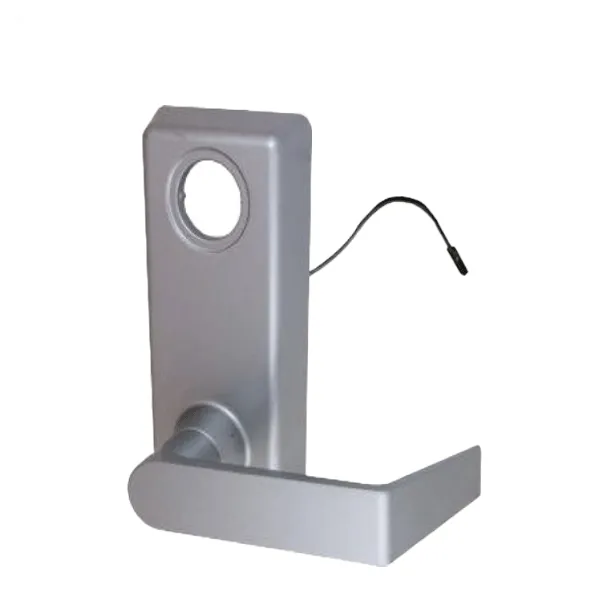

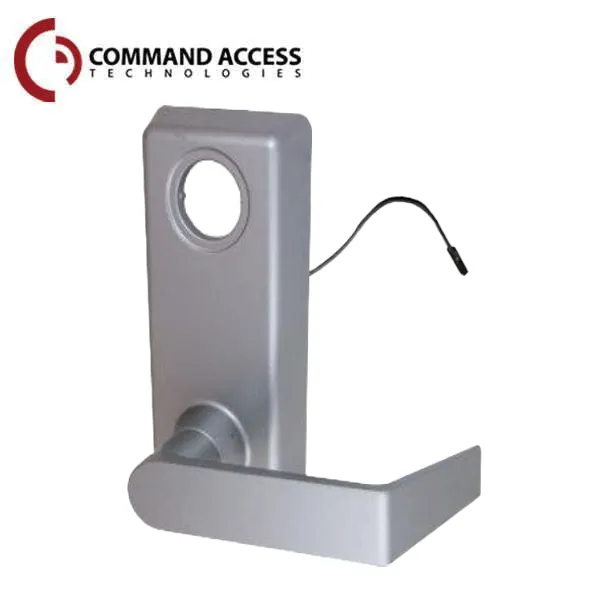

The Command Access Technologies V23EU-06-626 is an electrified exit trim designed for use with Von Duprin 22 exit devices. It is part of a line of electrified door hardware that allows the outside lever to be electronically unlocked, providing control over door access. The Outside lever unlocked (EU) electronically. Switched power allows the outside lever to retract the latch(es). The outside key momentarily unlocks the outside lever to retract the latch(es). Inside pushpad is always free for immediate egress.
Features:
- Fail-Secure Operation ensures that it stays locked during power loss for enhanced security.
- The free egress from the inside allows the inside lever to always exit in emergencies.
- The 24V DC Operation is compatible with most access control power systems
- The remote access control allows remote locking and unlocking through connected systems.
- Retrofit design easily retrofits onto VonDuprin 22 series exit devices without major modifications.
- Field Configurable supports fail-secure configuration based on installation requirements.
Specifications:
| Manufacturer | Command Access Technologies |
| Voltage | 24V DC |
| Current Draw | 350-450 mA |
| Power Type | Continuous Duty |
| Function | Storeroom |
| Finish | 626 Satin Chrome |
| Material | Corrosion-resistant metal, suitable for high-traffic environments |
| Compatibility | Compatible with all standard Von-Duprin 22 series exit devices |
| Operating Temperature Range | -20°F to 120°F (-29°C to 49°C) |
| Humidity | Designed for indoor and limited outdoor use, depending on environmental exposure |
| Certifications/Compliance | UL Listed for fire-rated doors Meets ANSI/BHMA standards for grade 1 hardware, ensuring the highest level of performance for commercial applications |
| Remote Access | Can be integrated into access control systems for centralized management and monitoring |
| Warranty | 3- year Manufacturer's warranty |
