Product Details
＋
The Carbon Dioxide and Ammonia Gas Detector is a multi-gas solutions designed for indoor agriculture applications like poultry farms who need to measure gases and gain long-term data storage capabilities.
Features
- Dual Beam NDIR or EC technology to measure gas concentrations
- Large LCD display for easy readability
- Audible Alarm
- Data Logging with 16GB SD Card
- Li-ion rechargeable batteries included
ABOUT CO2 STORAGE SAFETY CODES
This device will NOT meet requirements for CO2 safety monitoring which requires a Fixed/Wall mounted, hard-wired alarm per the NBIC, NFPA, or IFC regulations. Refer to our page for devices that meet your needs.
Call us at (877) 678-4259 toll-free or to speak with our technical sales team about purchasing the correct device.
Applications
- Food and Beverage
- Breweries and Wineries
- Poultry
- Agriculture
- Safety
Specifications
- Measures: CO2, NH3, PM2.5, PM10
- Sensing method: NDIR (CO2) and EC (NH3)
- CO2 Measurement range: 0~9999 ppm
- NH3 Measurement range - performance indicator only
- PM2.5, 10 Measurement range: 999 ug/m3 (whichever is great)
- CO2 Accuracy: ± 50ppm, ± 5% of reading (0~5,000 ppm)
- NH3 Accuracy: ±10%
- PM2.5,10 Accuracy: ±15% or ±15 μg/m³ (greater
- Temperature: 0~50°C,±1℃
- Power Supply: 3 Rechargeable Batteries - Li-ion 18650 3.7V
- Battery Life: tested to 24 hours
- Life Span: up to 15 years (NDIR) or up to 2 years (EC)
- Dimensions: 204.5 x 91.7 x 49.6 mm (8.1 x 3.6 x 2 inch)
- Weight: 305g (without batteries)
Includes
- CO2 and NH3 Multi-Gas Detector
- Manual
- USB Charging Cable

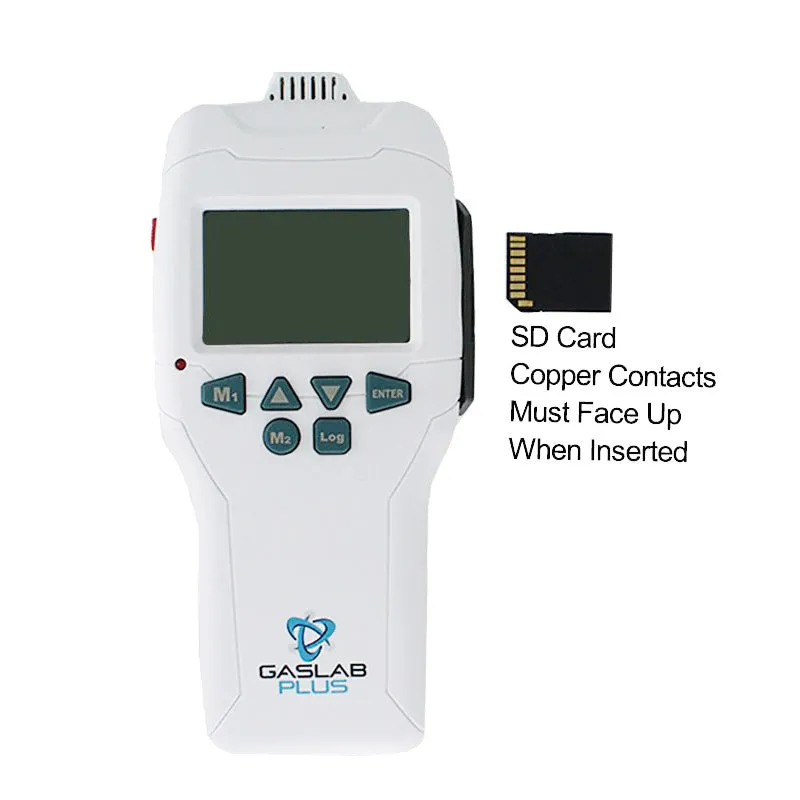

- SD Card (16g), Data Logging Capability
- Three (3) Li-ion rechargeable batteries
Warranty
- 1 year - See
Documents
Software Options
This device features data logs that are stored to a micro SD Card. The GasLab® Software is not compatible with this device
NH3 Detector, CO2 and NH3 Safety Monitor
