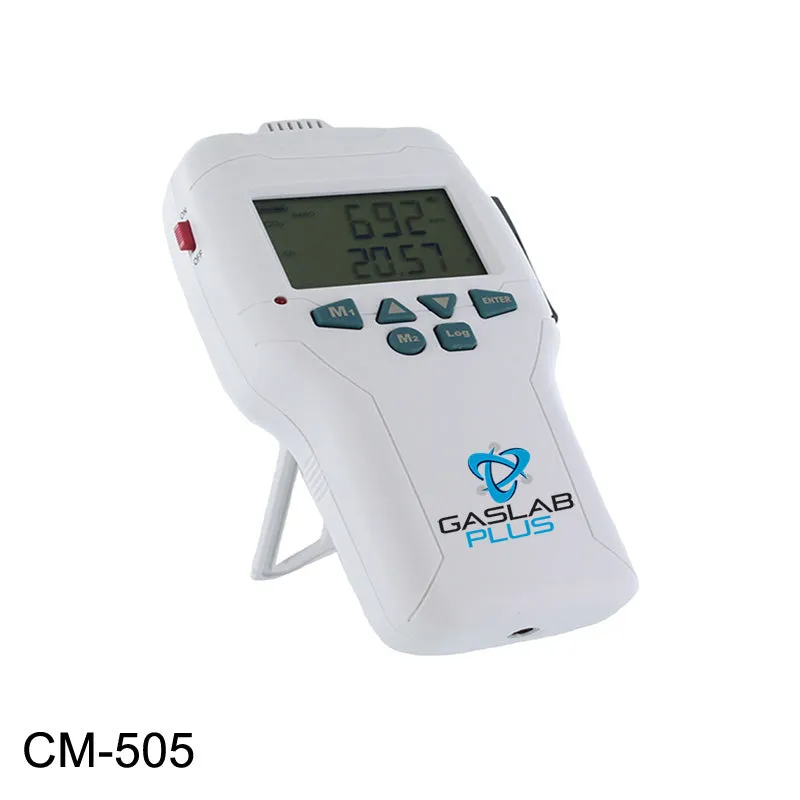

Name: Carbon Dioxide (CO2), Carbon Monoxide (CO) and Oxygen (O2) Handheld Detector
SKU: 522474

Product Details ＋

The CO2, CO, and O2 Portable Detector is designed to measure carbon dioxide, carbon monoxide, Oxygen, relative humidity and temperature across a variety of applications. With long-term data storage, the user can measure ambient gas levels by data displayed and gain indication by visual and audible alarm settings.

Features

NDIR (CO2), EC (CO), and Fluorescence quenching by Oxygen (O2)
Measures RH% and Temperature
Large LCD display for easy readability
Audible Alarm

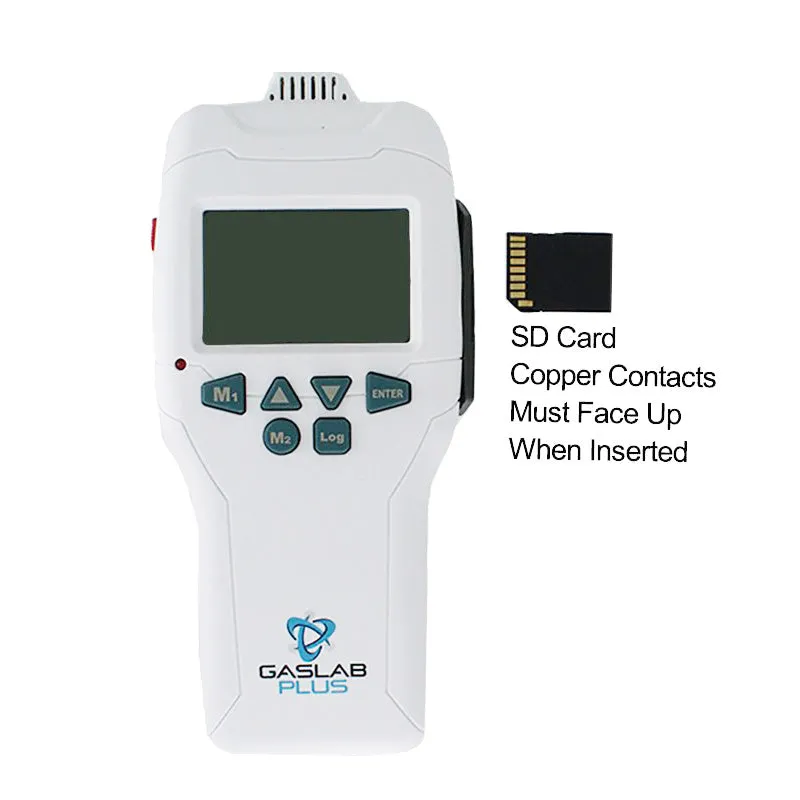

Data Logging with 16 GB SD Card
LCD Backlight for easy readability by dark
Li-ion rechargeable batteries included

ABOUT CO2 STORAGE SAFETY CODES

This device will NOT meet requirements for CO2 safety monitoring which requires a Fixed/Wall mounted, hard-wired alarm per the NBIC, NFPA, or IFC regulations. Refer to our page for devices that meet your needs.

Call us at (877) 678-4259 toll-free or to speak with our technical sales team about purchasing the correct device.

Applications

Food and Beverage
Brewing
Agriculture
Poultry
Cryogenics
Scientific
Medical
Safety, and many others

Specifications

Measures: CO2, CO, O2, PM2.5, PM10, Temp, RH%
Sensing method: NDIR, EC, and Fluorescence quenching by Oxygen
CO2 Measurement range: 0~9999 ppm
CO Measurement range: 0~1,000 ppm
O2 Measurement range: 0~25%
Temperature: 0~50°C
PM2.5,10 Measurement Range: 999 ug/m3 (whichever is greater)
CO2 Accuracy: ± 50ppm, ± 5% of reading (0~5,000 ppm)
CO Accuracy: ±5%~±10%
O2 Accuracy: <2% FS/0.1 mbar
PM2.5,10 Accuracy: ±15% or ±15 μg/m³
RH Accuracy: 0-100%
Power Supply: 3 Rechargeable Batteries - Li-ion 18650 3.7V
Battery Life: tested to 24 hours
Weight: 305g (without batteries)
Dimensions: 204.5 x 91.7 x 49.6 mm (8.1 x 3.6 x 2 inch)
Lifespan:

Fluorescence Quenching by Oxygen: 5 years
NDIR: 15 years
EC: 2 years

Includes

CO2, CO, O2, PM2.5, PM10 Gas Detector
Manual
USB Charging Cable
SD Card (16g), Data Logging Capability
Three (3) Li-ion rechargeable batteries

Warranty

1 year -

Software Options

This device features data logs that are stored to a micro SD Card. The GasLab® Software is not compatible with this device

Accessories

EBL Intelligent Batteries (need 3 for device) provides a fast charge and are upgraded ETL certified to be used with all CM-500 series handheld gas detectors.

With the EBL Universal Battery Charger, users will be able to charge the lithium batteries when plugged into a USB outlet. The battery charger also provides a clear indication of charge levels, turning green after fully charged.

RS485 Cable Option - Contact Us for Further Information
