Bullet Point

• A02 VTX is a high-quality 5.8GHz VTX with strong anti-interference ability and stable transmission. Comes with adjustable 25mW/200mW/500mW/800mW output power, allowing the perfect amount of output power to be selected based upon your FPV needs.
• With the 800mW output power, pilots can fly drones up to 1100 meters away, which offers a perfect FPV solution for pilots in search of long-range flight.
• At 5.26g of overall weight with a small-size layout, A02 VTX is perfectly suitable for Whoop and Toothpick Quad with a 26*26mm mounting hole, like X-Knight series, Beta85X/95X series and TWIG series drones without any reduction in performance or power.
• Come with a built-in microphone, A02 VTX provides a real-time sound transmission, pilots can get a more vivid flight experience.
• Featuring a fixed mounting hole and 6-pin connector, less solder work needed, which makes it’s super easy to install.

Specification

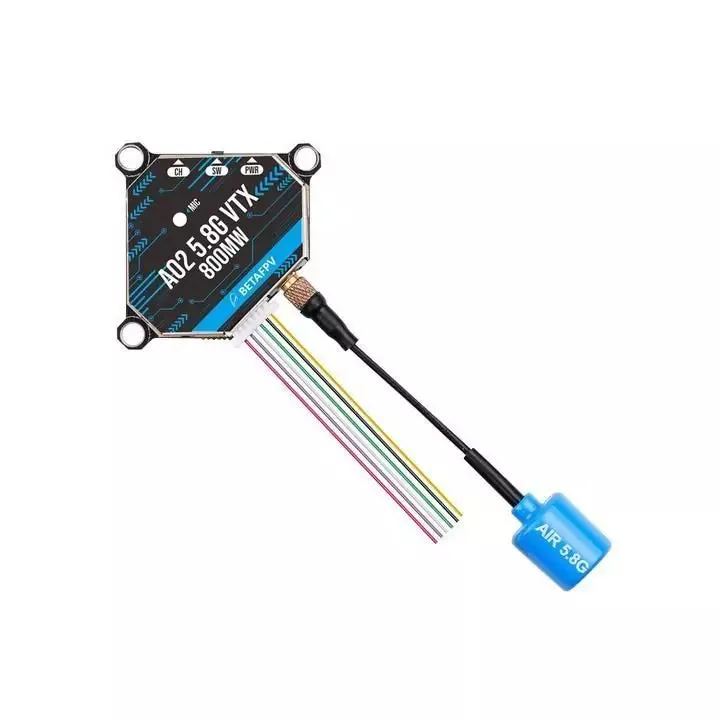

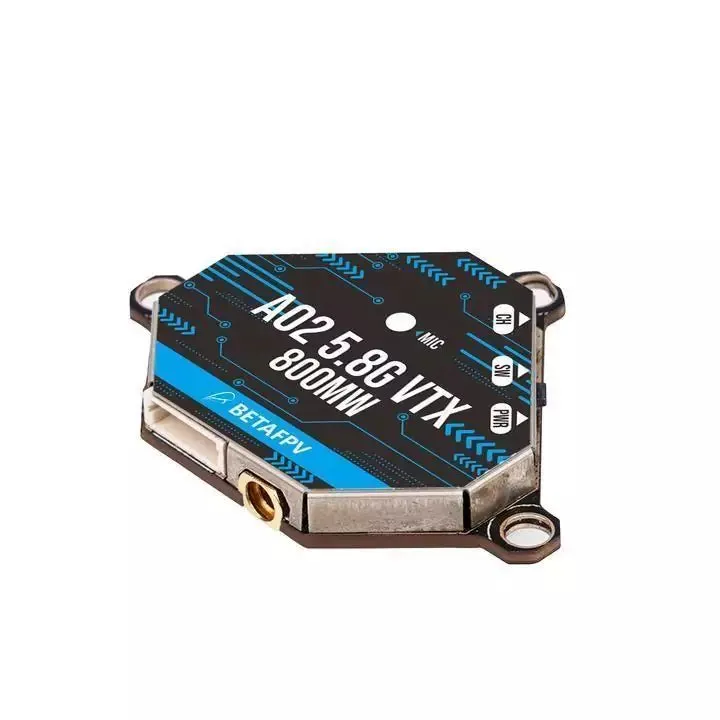

• Item: A02 5.8G VTX
• Output power: 25/200/500/800mW (adjustable)
• Supply voltage range: 7-35V
• Weight: 5.26g (excluding antenna)
• VTX size: 27.3x27.3x4.5mm
• Antenna: Air Antenna(MMCX Straight)
• Frequency: 5.8GHz 37 channels, with Raceband: 5645~5945MHz
• Channel SEL: SmartAudio
• Modulation type: FM
• Channel Indicate: 3 LEDs
• Frequency control: PLL
• All harmonic: Max -50dBm
• Frequency stability: ±100KHz (Typ.)
• Frequency precision: ±200KHz (Typ.)
• Channel carrier error: ±1.5dB
• Antenna port: 50 Ω
• Operating temperature: -10℃~ 60℃
