SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	3.5 cu.ft. (99 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Shipping Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Freezer
Door Swing	RHD
Reversible	Yes
Crisper Finish	Opaque
Crisper Cover	Glass
Interior Height	24.25" (62 cm)
Interior Width	17.75" (45 cm)
Interior Depth	16.5" (42 cm)
Shelf Type	Glass
Thermostat Type	Digital
Refrigerant Type	R134a
Refrigerant Amount	2.7 oz.
High Side PSI	235.0
Low Side PSI	70.0
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	17.5" (44 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	-12ºC to -25ºC

AVAILABLE UPGRADES

Door

STO-Step-To-Open Door Pedal

Step-to-open door pedal allows hands-free access to open the door 90 degrees

Exterior

Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface	DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK Stainless steel kickplate factory installed
Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
Extra key Extra keys available for purchase	TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar.	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad

Keypad door lock powered by appliance power cord for keyless security

KEYPAD

Battery-powered keypad door lock installed for keyless security

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to .
Note: Nickel is a component of stainless steel.

FEATURES

ADA compliant
32 inch height for lower ADA counters

Slim counter height dimensions
Less than 24 inches wide to fit tight spaces

Fully finished white cabinet
Allows the unit to be used freestanding

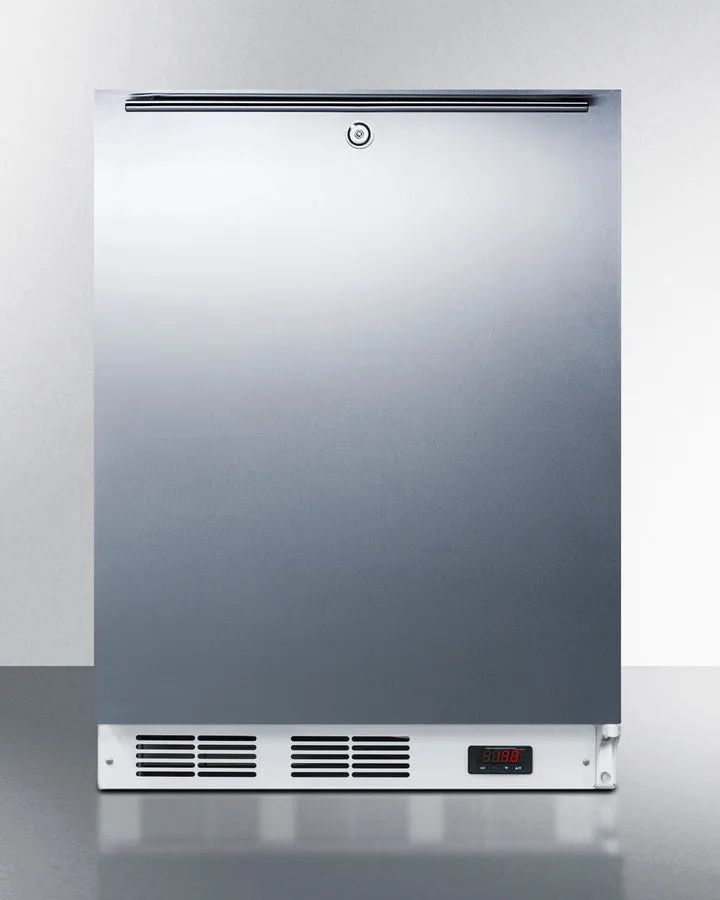

Stainless steel door
Durable design with lasting elegance

Professional horizontal handle
Thin 14mm diameter on stainless steel handle set horizontally across the door

Factory installed lock
Keep contents secure with a key lock on the door

-25º C capable
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

Manual defrost
No temperature fluctuations with an energy efficient manual defrost system

No internal fans
Static cooling system

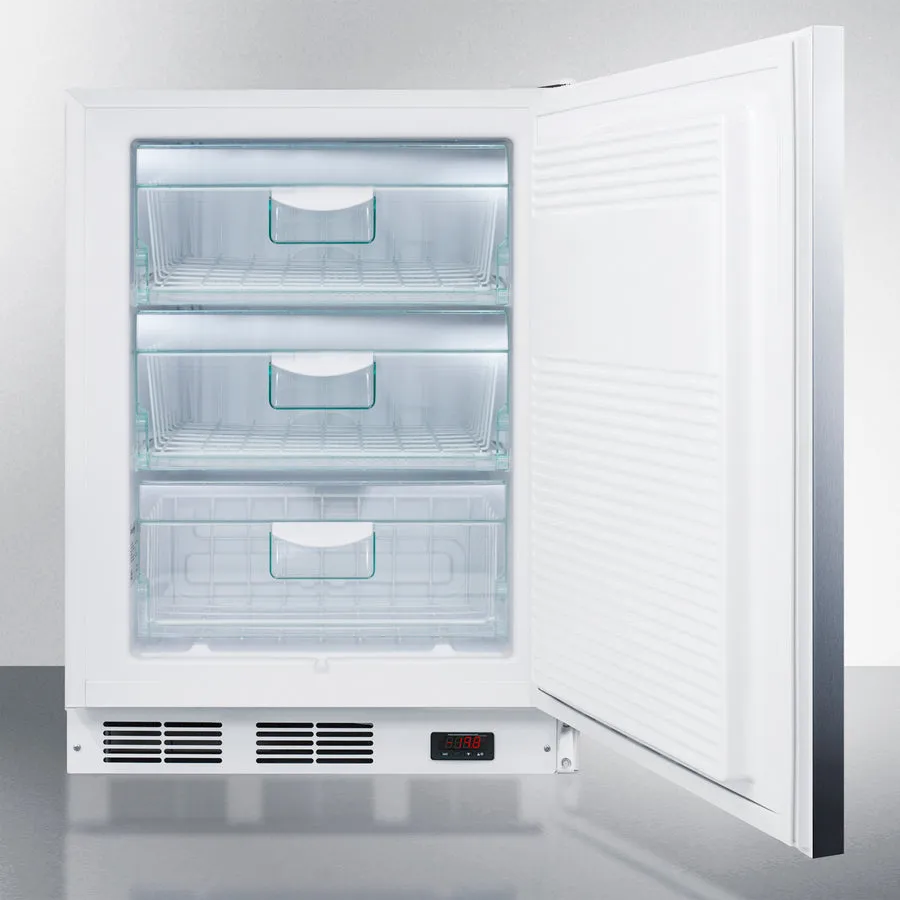

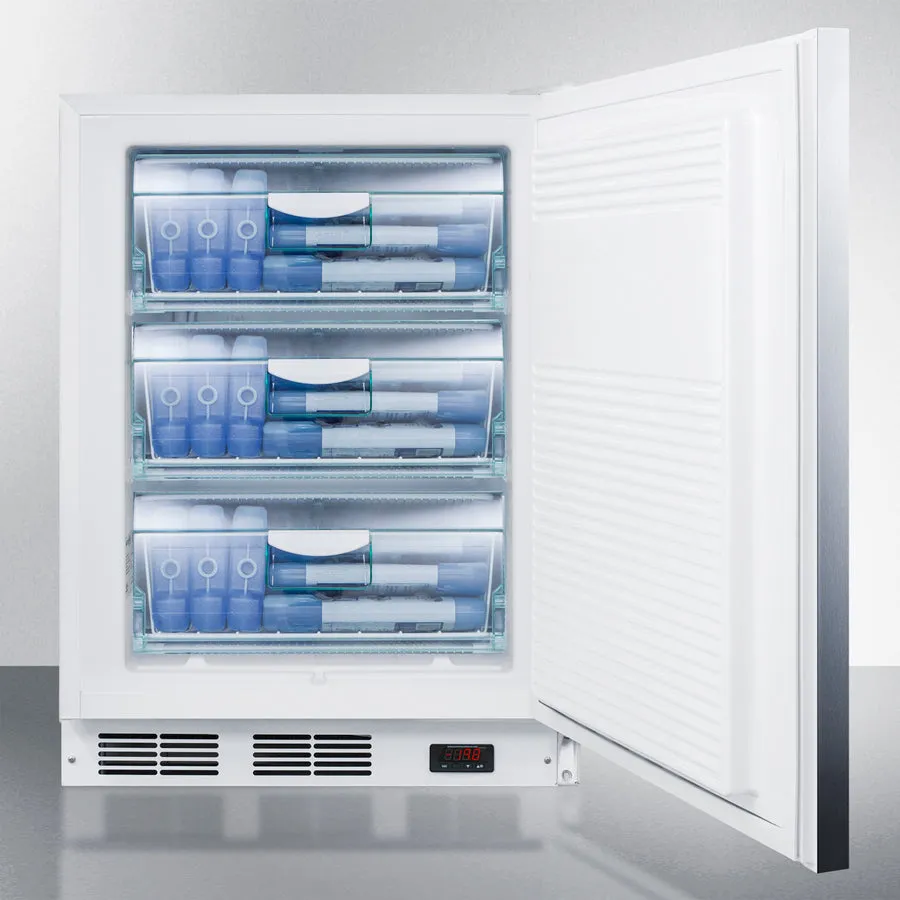

Three slide-out drawers
Conveniently organize your items while keeping the temperature stable when the door is opened

One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Digital thermostat
Electronic controls located in the front kickplate for easy and intuitive temperature management

100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

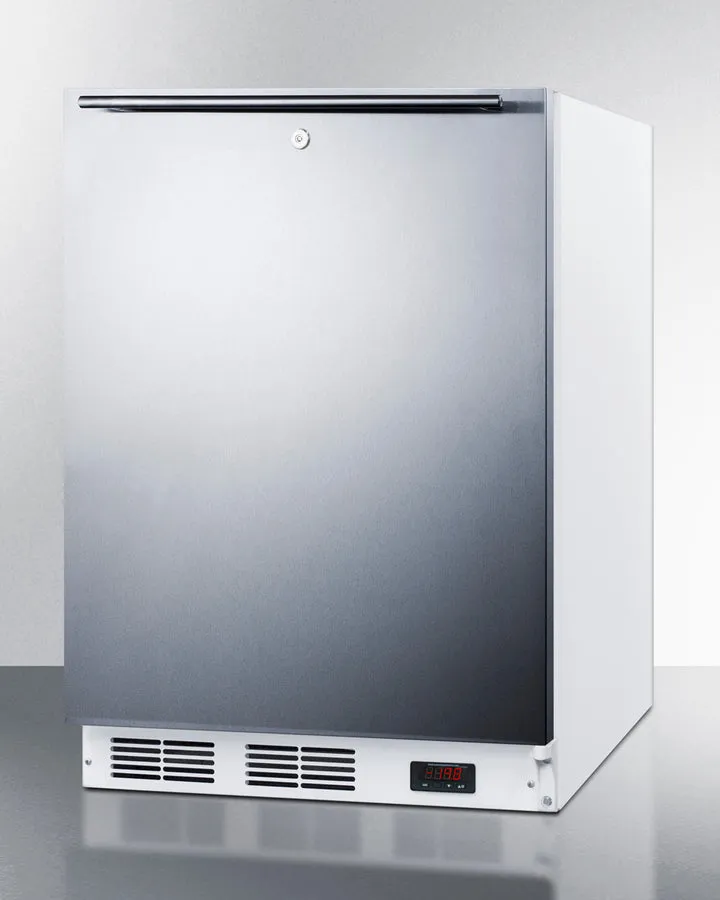

Accucold VT65MADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed freestanding use in ADA compliant settings.The 32” high VT65MLSSHHADA has a 24” footprint and is designed for freestanding use, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.This medical unit has a white cabinet and reversible 304 grade stainless steel wrapped door. A factory installed lock offers added security and a sleek horizontally mounted handle completes the look.NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
