Product Description

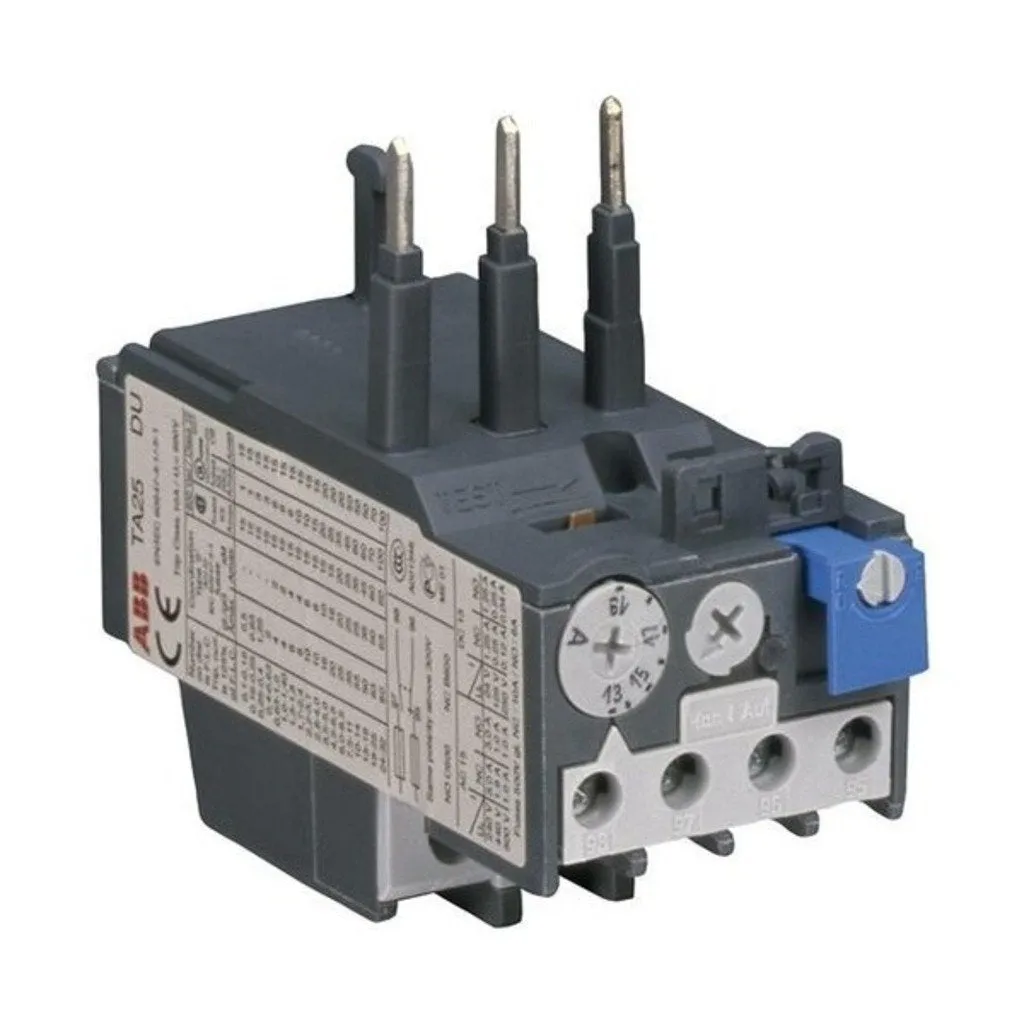

• TA25DU-0.16M to 32.0 thermal overload relay is an economic electromechanical protection device for the main circuit

• It offers reliable and fast protection for motors in the event of overload or phase failure

• The device has trip class 10A

• Further features are the temperature compensation, trip contact (NC), signal contact (NO),automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication

• The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory

• Product Width : 44 mm

• Product Height : 80 mm

• Product Depth / Length : 94 mm

• Product Weight : 0.15 kg

• Rated Insulation Voltage (U_i) : 690 V

• Number of Poles : 3

• Number of Protected Poles : 3

• Conventional Free-air Thermal Current (I_th) : Auxiliary Circuit NC 5 A , Auxiliary Circuit NO 5 A

• Degree of Protection : Housing IP20 , Main Circuit Terminals IP10

• Pollution Degree : 3

• Connecting Capacity Auxiliary Circuit : Flexible 1/2x 0.75 ... 2.5 mm² , Rigid 1/2x 0.75 ... 4 mm²

• Tightening Torque : Auxiliary Circuit 1 ... 1.3 N·m , Main Circuit 1.5 ... 1.9 N·m

• Wire Stripping Length : Auxiliary Circuit 9 mm , Main Circuit 12 mm

• Recommended Screw Driver : Auxiliary Circuit Pozidriv 1 , Main Circuit Pozidriv 2

• Mounting Position : Position 1 to 4

• Power Loss : at Rated Operating Conditions per Pole 0.9 ... 2.2 W

• Suitable For : AX09,AX12,AX18,AX25,AX32,AX40

• Standards : IEC/EN 60947-1,IEC/EN 60947-4-1,IEC/EN 60947-5-1,UL 508,CSA 22.2 No. 14
